Product

CABLE—FTTH

JFJDH Optical Fiber Cable
  • Specification
  • Features

Model NO.

GJFJDH - 4,6,8,12 B6

Fiber type

G657/G652

Sheath color

Yellow, Orange or Customized

Sheath material

LSZH or Flamed-retardant material

Cable dimension (mm)

 3.2*2.5,5.0*2.5, Tolerance±0.1

Cable weight (Kg/km)

6.0-9.8

Min. bending radius (mm)

100 (Static)

50(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm

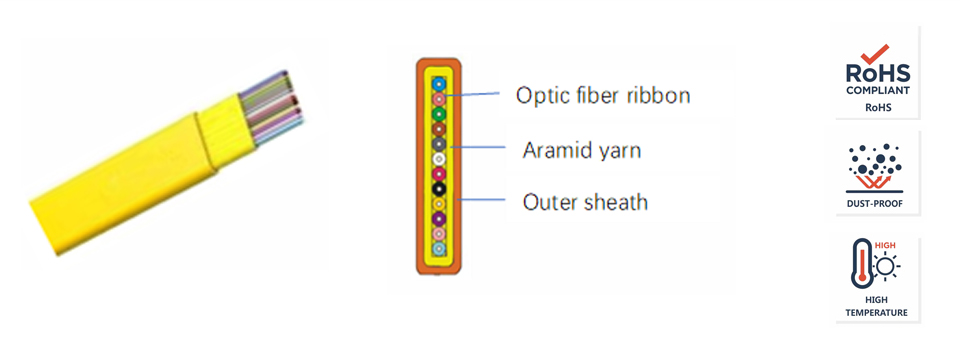

1  The flat 24core ribbon
    fiber are evenly bound
    with high tensile aramid
    yarn and protected by
    high quality outer
    sheath.


1  All-dielectric, armored,
    aerial self-supporting
2  Can be prepped and
    spliced much more
    rapidly.

1  Maximum fiber density
    relative to cable diameter
