Model NO. |
GJYXCH |
|
Fiber type |
G657A1/G657A2 |
|
Sheath color |
Black/White/Grey |
|
Sheath material |
LSZH/PVC |
|
Cable dimension (mm) |
5.0*2.0, Tolerance±0.1 |
|
Cable weight (Kg/km) |
22 |
|
Min. bending radius (mm) |
15 (Static) 30 (Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

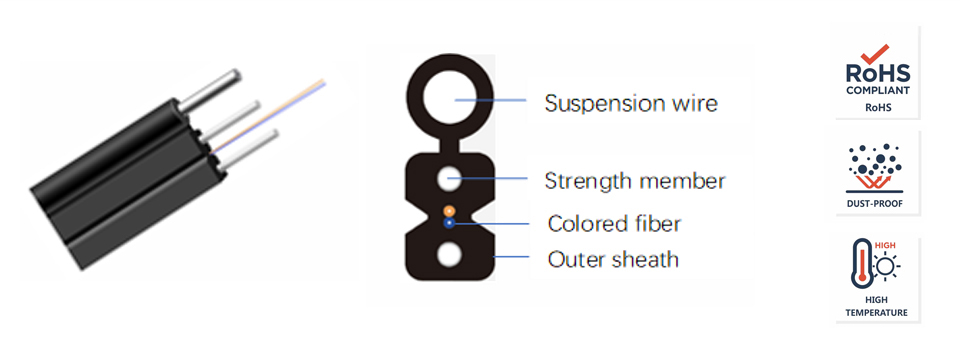

 1 1.0mm or 1.2mm suspension wire for outdoor, with big tensile strength. |
 1 Strength member can be steel, FRP or KFRP. 2 Usually can install 1 or 2 fibers |
 1 Widely used adding SC/LC connectors; 2 Easy to installed with FIC |
