CABLE—FTTH

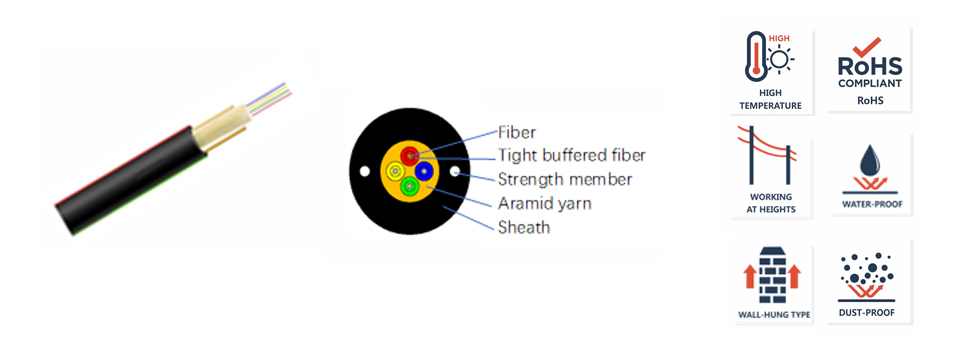

GYFJPH Optical Fiber Cable
  • Specification
  • Features

Model NO.

GYFJPH

Fiber type

G657A2

Sheath color

Black

Sheath material

LSZH

Cable dimension (mm)

6.0, Tolerance±0.1

Operation temperature (℃)

-20~+60

Min. bending radius (mm)

20 (Static)

10(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm



1  Two parallel Fiber Reinforced
    Plastics (FRP).
2  PE sheath protects cable from
    ultraviolet radiation.


1  Small diameter, light weight
    and easy installation.


1  Long delivery length.
2  Packed by wooden drum.
