| Model NO. | GYFY |
| Fiber type | 9/125, 50/125, 62.5/125 |
| Sheath color | Black or Customized |
| Sheath material | PE |
| Cable dimension (mm) | 9.5, Tolerance±0.1 |
| Cable weight (Kg/km) | 80 |
| Min. bending radius (mm) |
30 (Static) 15(Dynamic) |
| Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

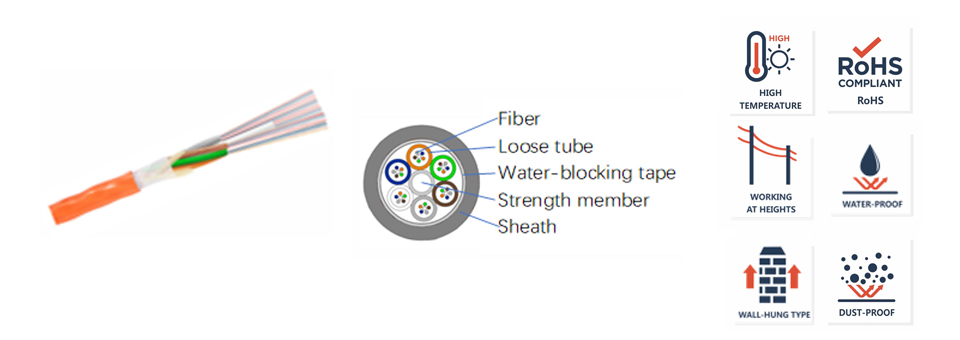

 1 Special filling gel filled loose tubes provide perfect optical fiber protection。 2 Water block. |
 1 (FRP) as central strength member gives high tensile strength |
 1 All dielectric structure, light weight, easy installation. 2 Aerial , Duct. |
