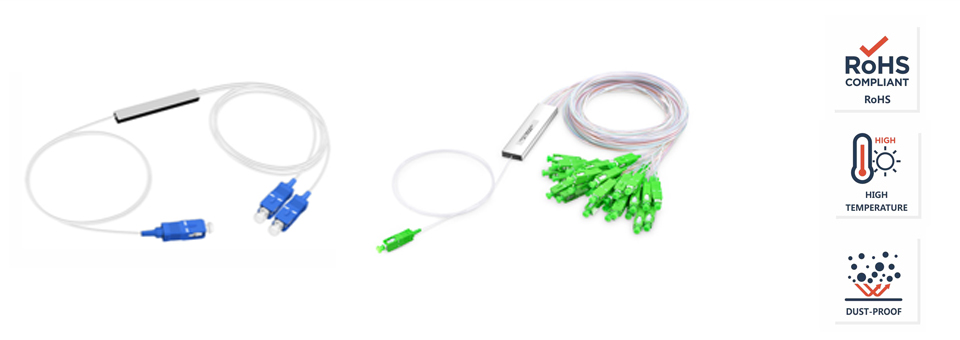

SPL-M01 Splitter Planar Lightwave
  • Specification
  • Features

Model No.

SPL-M01

Type

1x2/x4/x8/x16/x32/64

Operating Wavelength

1260~1650(nm)

Return Loss(dB)

UPC≥50  APC≥55

Connector

SC/FC/LC Optional

Pigtail Length (m)

1.0(±0.1) or Customer Specified

Fiber

G657A or customized

Tail jacket color

Blue ,black or customized

Operating temperature

-40-85℃

Humidity

≤ 95%

Atmospheric Pressure

70-106Kpa


Standard dimensions


Ceramic ferrule

Ceramic ferrule
connecto

High-quality fiber core
stable transmission

  High-quality chips
