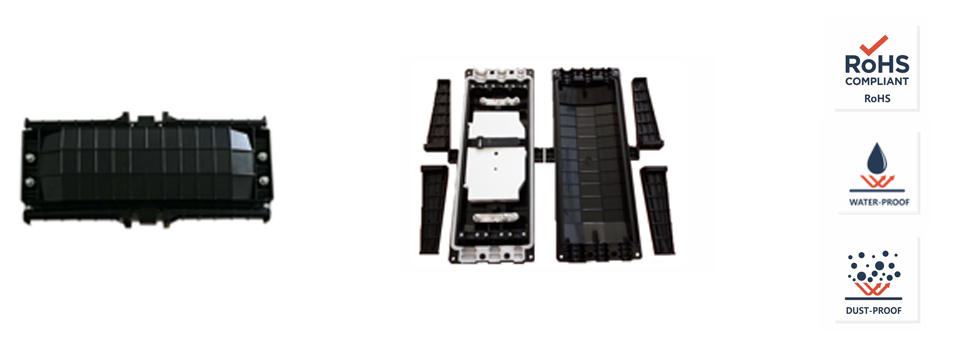

FOC-HM05-96 HORIZONTAL CLOSURE
  • Specification
  • Features
Model No. FOC-HM05-96
Dimension( H x W x D) 180x360x105mm
Max capacity of tray 24
Max Capacity of Splicing 96
Max Number of Trays 4
Input/ Output Port 3(Φ11.5x22.5mm)/ 3(Φ11.5x22.5mm)
Bending  Radius  ≥30mm
Sealing  Mechanical


1  The shell is made of high-strength engineering plastics,degree of protection:IP65.

1  No need to cut off the main cable,directly take out fiber from the main cable.

1 Easily operate and max splicing capacity.
