CABLE—FTTH

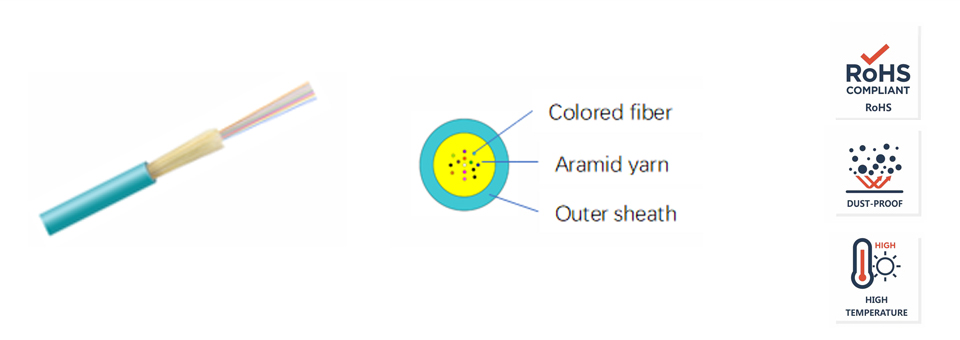

GJFH Optical Fiber Cable
  • Specification
  • Features

Model NO.





GJFH

Fiber type

9/125

Sheath color

Green or Customized

Sheath material

LSZH or PVC

Cable dimension (mm)

 3.0,3.5, Tolerance±0.1

Cable weight (Kg/km)

7.5/8.0

Min. bending radius (mm)

100 (Static)

50(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm



1  Good uniformity of the
    outer diameter of tight
    buffer fiber.
2  Easy to strip.


1 Can be made for patch
   cords, MTP/MPO, pigtails.

1  Package and shipment
2  Customized outer sheath
