Model NO.
|
GJFJH -1 B6, or multi-core |
|
Fiber type |
9/125(G657A1/G657A2) |
|
Sheath color |
Yellow, Orange or Customized |
|
Sheath material |
LSZH (or PVC) |
|
Cable dimension (mm) |
1.6~6.8, Tolerance±0.1 |
|
Cable weight (Kg/km) |
2.5~35 |
|
Min. bending radius (mm) |
15 (Static) 30(Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |
 1 From 1-24C |
 1 Soft, flexible, easy to splice and with big capacity data transmission. |

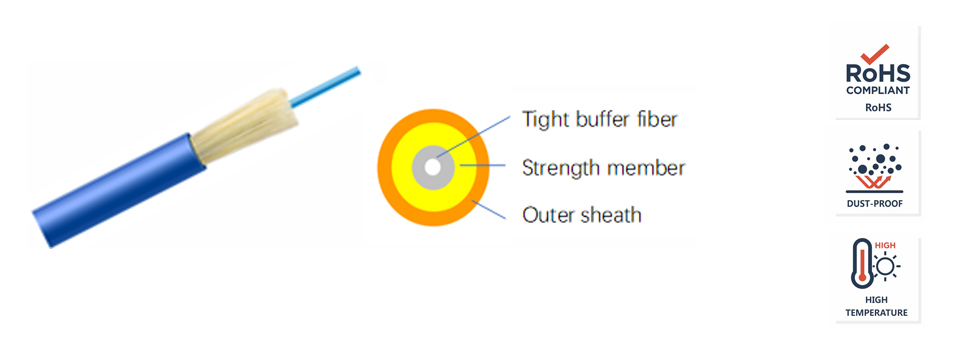

 1 Tight buffer layer. Protect fiber from damage, and easy splicing. 2 Good bending performance. |
