Model NO.
|
GJFJHV |
|
Fiber type |
9/125, 50/125,62.6/125 |
|
Sheath color |
Yellow, Green or Customized |
|
Sheath material |
LSZH/PVC |
|
Cable dimension (mm) |
7.0-12.2, Tolerance±0.1 |
|
Cable weight (Kg/km) |
45-140 |
|
Min. bending radius (mm) |
30 (Static) 15 (Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

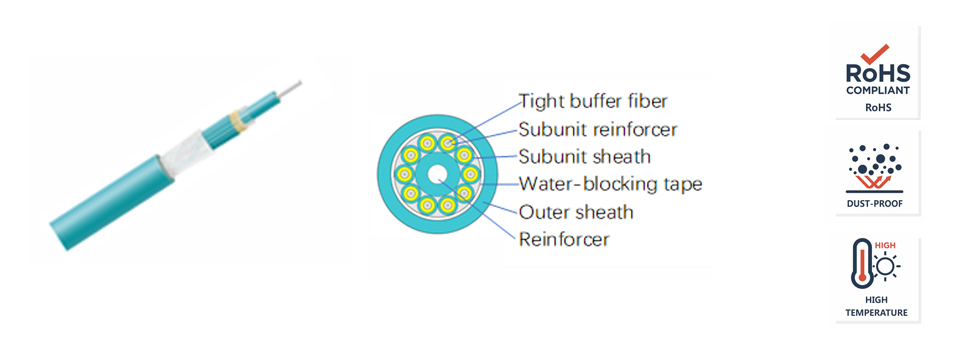

 1 Tight buffer fiber with single strength member. 2 Each sub cable contains aramid yarn, good bend performance. |
 1 Standard core can be directly apply to connectors, to use for device connecting. |
 1 Suitable for indoor and outdoor 2 Customized color. |
