Product

CABLE—FTTH

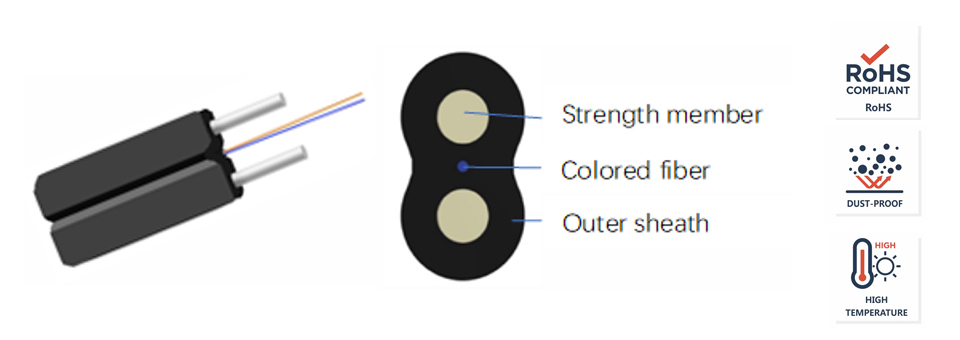

GJYXFH Optical Fiber Cable
  • Specification
  • Features

Model NO.

GJYXFH

Fiber type

9/125(G657A1/G657A2)

Sheath color

Black/White/Grey

Sheath material

LSZH/PVC

Cable dimension (mm)

5.0*3.0, Tolerance±0.1

Cable weight (Kg/km)

14.6

Min. bending radius (mm)

15 (Static)

30 (Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm



1   Groove design, easily
     strip and splice.
2   simplified installation
     and maintenance.
3   higher tensile strength


1  Suitable for all kinds of
    connectors
2  Can make patchcord and
    pigtail.

1  Used in indoor cabling,
    especially used for FTTH.
2  Used as access building
    cable.
